The Ultimate Model !  No Glue included .


Complete Replica

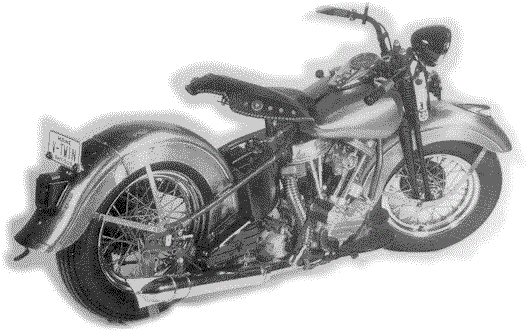

1948 Panhead
Motorcycle Kits.


CALL FOR PRICING - AVAILABILITY

CHECK WITH YOUR LOCAL AUTHORITIES

MAY NOT BE ABLE TO REGISTER FOR STREET USE

V Twin Complete Pan Head Replica Bike Kit

Supplied by

Distributed by CAS











Available Options :

  • Chrome Model Build Kit

  • Restoration Model Build Kit

  • Foot Shifter Model Build Kit

  • Suicide Hand Shifter Model Build Kit



You must specify which Model when ordering.
A parts list for the foot shift models are below.


Order

The following components are included in this complete bike kit.
100 % of the parts used to build this bike come from the V-Twin catalog.

Chrome or Restoration

Part # ,   Part #,
Description

55-5002 55-5003
Complete Kit includes:

55-2517 55-2518 Chassis Kit
10-2003 10-2005 Engine Assembly
42-0101 42-0098
Skid Plate
8164-19 8165-19 Engine Mount Bolt Kit
35-0021 35-0021 Bendix Carb
34-0505 34-0505 Air Cleaner
35-0085 35-0085 Carb Manifold
35-0417 35-0417 Manifold Clamps
35-0402 35-0402
Petcock
17-0025 17-0026 Transmission Assembly
17-6660 17-6654
Transmission Mount Plate
8231-26 8232-26 Transmission Mount Kit
18-0101 18-0101 Clutch & Drum Kit
19-0360 19-0360 Primary Chain 82L
19-0051 19-0051 Motor Sprocket 23T
17-0945 17-0945
Motor Sprocket Nut Kit
19-0082 19-0082 23 Tooth Transmission Sprocket
19-0321 19-0321 102 Link Chain
7704-2 9629-2 Rear Chain Adjuster
31-0110 31-0261
Top Motor Mount
8419-2 37-9148 Top Motor Mount Nuts
18-3603 18-3626 Clutch Arm
42-0622 42-0620
Inner Primary
7812-12 7812-12 Inner Primary Mount Kit
42-0611 42-0595 Outer Primary
42-0627 42-0642 Primary Derby
42-0626 42-0641 Primary Inspection Cover
15-0642 15-0642 Primary Gasket Kit
8155-30 8156-30 Outer Primary Mount Screws
22-0706 22-0707 Mechanical Rear Brake Kit
22-0708 22-0709 Mechanical Backing Plate Kit
23-0429 23-0430 Rear Brake Drum
23-0440 37-8675 Rear Lug Bolts
27-0908 27-0907 Floor Boards
27-0605 27-1712
Floor Board Mount Brackets
8773-12 9685-12
Floor Board Mount Pin Kit
27-1713 27-1701
Jiffy Stand Assembly
49-0918 49-0919
Rear Frame Stand
9616-4 8015-4 Rear Stand Bolts
31-0480 31-0186 Rear Stand Catch
37-9021 37-9021 Frame Neck Lock & Keys
47-0226 47-0226 Solo Seat
31-0513 31-0415 Seat "T" Bracket
49-1929 49-0181
Seat Post Assembly
8874-2 9691-2 Seat Post Nut
8623-2 8623-2 Seat Post Top Pin
50-0600 50-0601 Tool Box
8206-9 9669-9
Tool Box Mount Kit
27-1677 27-1600 Rear Chain Guard
9601-10 9601-10 Chain Guard Mount Kit
39-0911 39-0911 2:1 Ratio Dash Kit
28-0610 28-0610 Rubber Tank Divider
36-2524 36-2524 Speedo Cable
9650-1 9650-1 Speedo Cable Clamp
49-0327 49-0326 Handlebars Offset
9217-4 9508-4 Pinch Bolt
49-0087 49-0087 Pull Throttle

49-0083 49-0083 Push, Throttle Assembly

36-0960 36-0950
Outer Cable
36-0950 36-0950 Outer Cable
36-0953 36-0953 Inner Cable, pair
7626-2 7626-2 Screw Set
49-0150 49-0150 Plunger
43-0150 49-0150 Plunger
28-0101 28-0101 Black Grips
38-0312 38-0312 Chrome Gas Gap Set
49-0423 49-0423 Cone Lock Plate
22-1083 22-1084 F. Brake Assembly
36-0418 36-0414 Brake Handle Kit with Cable
37-8776 37-8776 Brake Cable Clamp
37-9027 37-9027 Brake Cable Clip
49-0920 49-0921 Head Lamp
33-0141 33-0141 12V Head Lamp Bulb
49-0165 49-0103 Head Lamp Bracket
37-0527 37-0525 Lamp Bracket Bolts
49-1985 49-1985 Ride Control
49-1952 49-1952 Steering Damper
33-0405 33-0405 Front Fender Lamp
9786-11 9786-11 Front Fender Lam p Wire
33-0708 33-0708 Horn, 12V
37-0544 37-0544 Lower Horn Mt & Reinforce Plate Kit
49-0115 49-0115 Lower Horn Mount
34-0995 49-0912 Mirror
33-0305 33-1973 Tail Lamp and Bracket
46-0306 46-0304 50OX16 Commander Tire, front
46-0306 46-0304 500x16 CommanderTire, rear
46-61114 46-0114 500x1 6 Inner Tube, front
46-01 14 46-0114 50OX1 6 inner Tube, rear
46-0194 46-0194 500x16 Rim Strips,
51-0896 51-1044 Front Engine Dress Bar
51-0895 51-0889 Rear Frame Bar
9530-13 9532-13 Rear Frame Bar Mount Kit
32-0207 32-0208 12 Volt Generator
15-0150 15-0150 Generator Gasket, 1 pc
31-0169 31-0169 Generator rear Kit
8153-2 8154-2 Generator Mount Screw
32-0626 32-0626 12V Regulator
53-0505 53-0505 12 Volt Mini Battery
42-9916 42-9916 12 Volt Mini Battery Box
31-0207 31-0207 Regulator Mount
32-0705 32-0705 Wiring Harness Complete
32-9222 32-9222 Terminal Box
37-0523 37-0523 Horn Bolt and nsulator Stud
32-9315 32-9315 Handlebar Wire Set
32-0400 32-0400 Horn Switch
32-0401 32-0401 Dimmer Switch
32-7520 32-7523 12V Coil
8823-10 8823-10 Coil Mount Studs
42-0762 42-0670 Battery Top Cover
42-9918 42-9918 Battery Rod Set with Pads
29-0160 29-0160 Exhaust Header, 2:1
12-2125 12-2125 Head Nut Set
30-0143 30-0143 Stock Cigar Muff ler
31-3951 31-3951 Muffler Clamp Set
30-0110 30-0110 Exhaust Flex Pipe Cover
16-0843 16-0843 Tool Kit
32-0430 32-7515 Mech Spotlight Switch

Foot Shift Options
22-0702 22-0702
Mousetrap Booster Kit
22-0805 22-0805 Shifter Kit




Assembly required by certified technician.

This kit includes everything needed to assemble a finished motorcycle from scratch( except paint, engine fluids and labor to assemble).

Every nut, washer, bolt, spacer and cable is included !

Notes:

  •  Specifications and some components subject to change based on availability, although fitment will remain the same.

  • You are not allowed to choose different parts for this kit.

  • Any other parts that you wish to include for this bike kit will be added to the above parts list and added on the price of the Complete bike kit.
